01 minicom 串接口工具

01 minicom 串接口工具

安裝方法:

$minicom-2.5.tar.gz
$tar zxf minicom-2.5.tar.gz -C  /opt/EmbedSky/minicom-2.5
$cd /opt/EmbedSky/minicom-2.5
$./configure
$make
$make install

啟動
$minicom -s

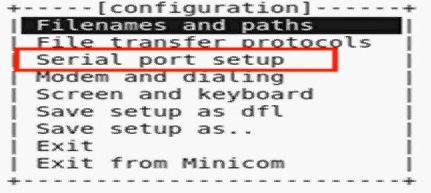

選取
Serial Port Setup

Screen Shot 2014-01-12 at 10.15.48 AM

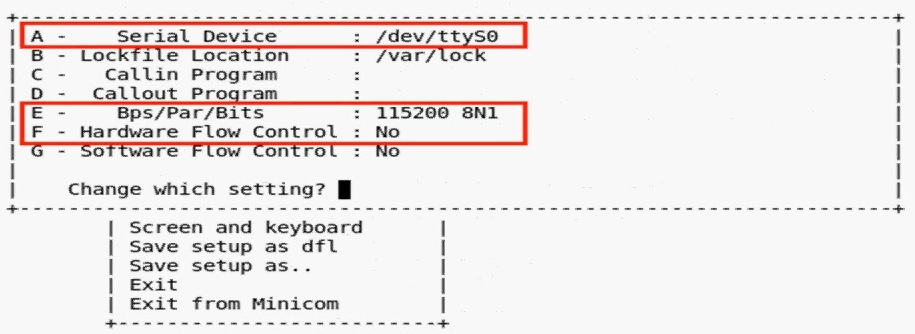

選取/dev/ttyS0
速度是: 115200 8N1
設定 Hardware Flow Control 為No

Screen Shot 2014-01-12 at 10.17.30 AM

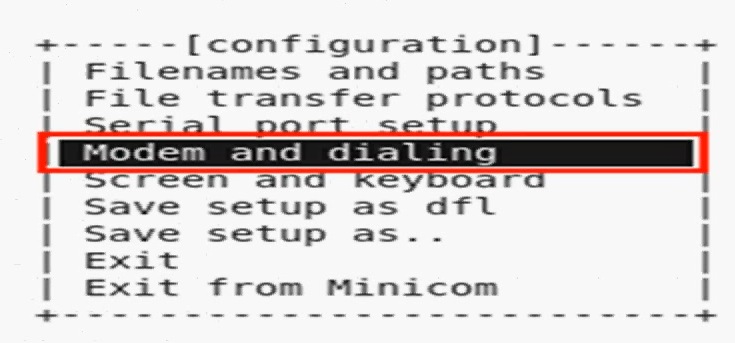

修改Confuguration 為 Modem and dialing

Screen Shot 2014-01-12 at 10.21.56 AM

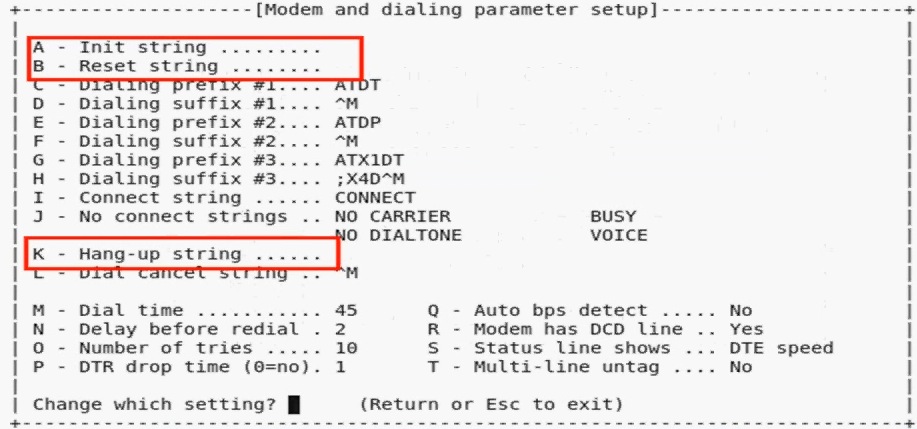

將Init string , Reset String, Hang-up string 設定為空

Screen Shot 2014-01-12 at 10.24.19 AM

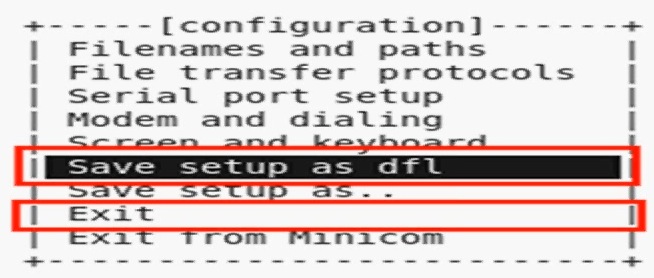

為了下一次使用的時候可以輕鬆些,不用再做一次這些定,你可以用Save setuo as dfl
在透過Exit 離開

Screen Shot 2014-01-12 at 10.26.49 AM

 下次使用,可以透過

$minicom

按下ctrl+A 跳出視窗來控制。



如果沒正常關閉minicom ,下次執行會有問題,請把/va/lock/LCK* 給刪除掉。
