PowenKo,iOS Tutorial 110-2, Framework, Create Framework via Bundle on xcode 4.1

September 10, 2011   ·   0 Comments

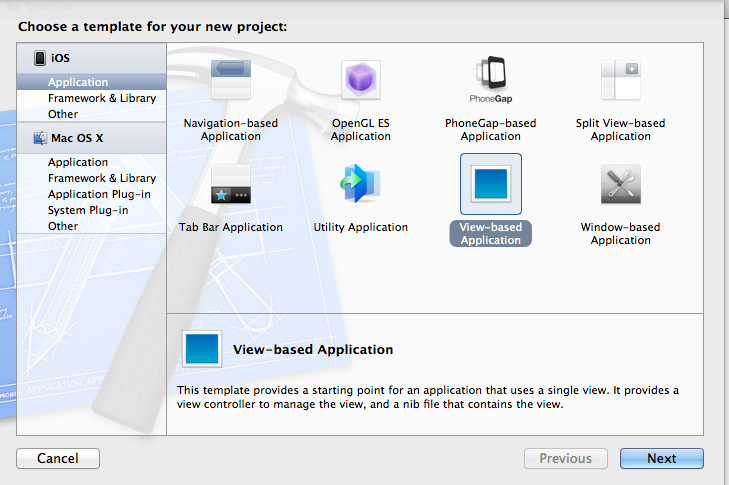

step1:

new a project app.

step2:

new a class

#import

@interface PowenLib : NSObject
- (int) Fun1:(int)i_in;
@end

#import "PowenLib.h"

@implementation PowenLib

- (id)init
{
    self = [super init];
    if (self) {
        // Initialization code here.
    }

    return self;
}
- (int) Fun1:(int)i_in{
    return i_in*i_in;
}

@end

3. Create a Framework Target:
top

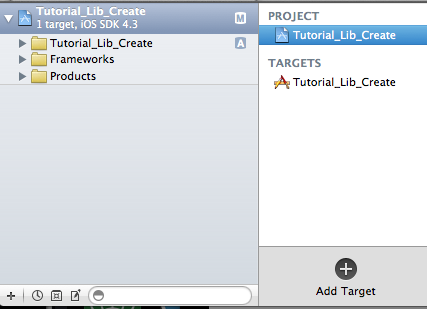

OK, let’s create a target to compile our framework. Click on the icon of your project in the project navigator at the left and hit the button “Add Target”. A new window will come up. Now is our first trick. Instead to create a “Cocoa Touch Static Library” or a “Cocoa Framework” we will create a “Bundle” target.

A Bundle? Really? Yes! I can explain. A “Cocoa Framework” target can’t be compiled to armv6/armv7 and Xcode doesn’t allow us to use “Static Libraries” in a “Cocoa Framework”, so we can’t use this target. On the other hand, we can’t use “Cocoa Touch Static Library” either, because it doesn’t use the framework structure that we want.

Now, the Bundle target could be the best choice. It can hold any file we want, we can compile source code inside it and… we can turn it into a framework. To say the truth, almost all “Framework & Library” targets could be turned into a framework too, even the “Cocoa Touch Static Library”, throughout this article you probably will figure out how. For now, let’s create a Bundle target.


  • Architectures
    Standard (armv6 armv7) (the values for this property depend on the value of the item bellow, so set that first).
  • Base SDKLatest iOS (iOS X.X) (in the X.X will appear the number of the lastest iOS SDK installed on your machine).
  • Build Active Architecture OnlyNO (otherwise we can’t compile to armv6 and armv7 at the same time).
  • Valid Architecture$(ARCHS_STANDARD_32_BIT) (it’s very important to be exactly this value).
  • Dead Code StrippingNO.
  • Link With Standard LibrariesNO.
  • Mach-O TypeRelocatable Object File. This is the most important change. Here, we instruct the compiler to treat the Bundle as a relocatable file, by doing this, we can turn it into a framework with the wrapper setting.
  • Wrapper Extensionframework. Here we change the Bundle to a Framework. To Xcode, frameworks is just a folder with the extension .framework, which has inside one or more compiled binary sources, resources and some folders, a folder, usually called Headers, contains all the public headers.
  • Generate Debug SymbolsNO (this is a very important setting, otherwise the framework will not work on other computers/profiles).

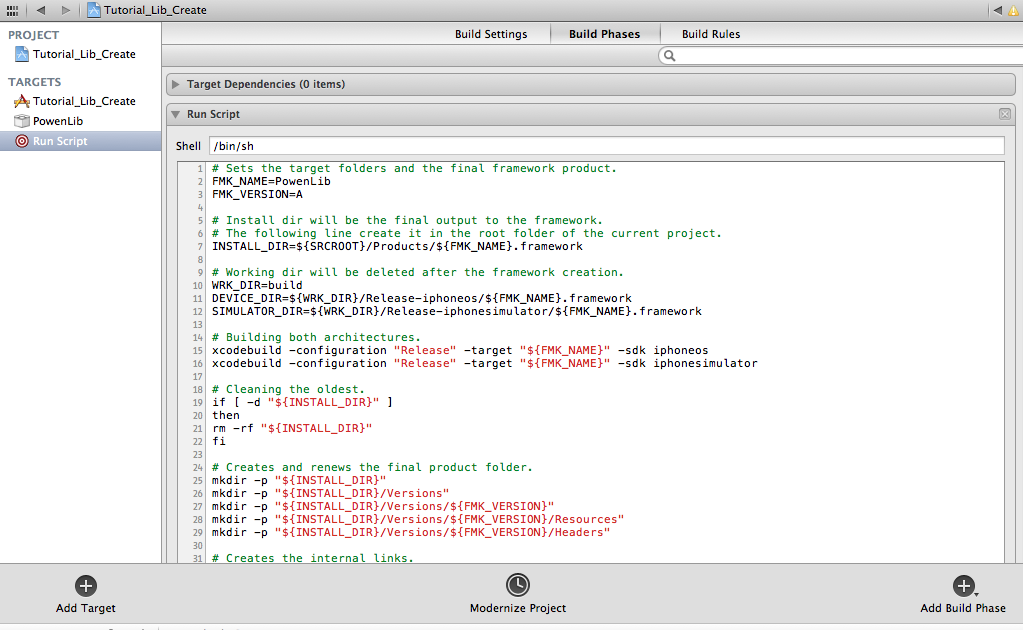

# Sets the target folders and the final framework product.
FMK_NAME=FI
FMK_VERSION=A

# Install dir will be the final output to the framework.
# The following line create it in the root folder of the current project.
INSTALL_DIR=${SRCROOT}/Products/${FMK_NAME}.framework

# Working dir will be deleted after the framework creation.
WRK_DIR=build
DEVICE_DIR=${WRK_DIR}/Release-iphoneos/${FMK_NAME}.framework
SIMULATOR_DIR=${WRK_DIR}/Release-iphonesimulator/${FMK_NAME}.framework

# Building both architectures.
xcodebuild -configuration "Release" -target "${FMK_NAME}" -sdk iphoneos
xcodebuild -configuration "Release" -target "${FMK_NAME}" -sdk iphonesimulator

# Cleaning the oldest.
if [ -d "${INSTALL_DIR}" ]
then
rm -rf "${INSTALL_DIR}"
fi

# Creates and renews the final product folder.
mkdir -p "${INSTALL_DIR}"
mkdir -p "${INSTALL_DIR}/Versions"
mkdir -p "${INSTALL_DIR}/Versions/${FMK_VERSION}"
mkdir -p "${INSTALL_DIR}/Versions/${FMK_VERSION}/Resources"
mkdir -p "${INSTALL_DIR}/Versions/${FMK_VERSION}/Headers"

# Creates the internal links.
# It MUST uses relative path, otherwise will not work when the folder is copied/moved.
ln -s "${FMK_VERSION}" "${INSTALL_DIR}/Versions/Current"
ln -s "Versions/Current/Headers" "${INSTALL_DIR}/Headers"
ln -s "Versions/Current/Resources" "${INSTALL_DIR}/Resources"
ln -s "Versions/Current/${FMK_NAME}" "${INSTALL_DIR}/${FMK_NAME}"

# Copies the headers and resources files to the final product folder.
cp -R "${DEVICE_DIR}/Headers/" "${INSTALL_DIR}/Versions/${FMK_VERSION}/Headers/"
cp -R "${DEVICE_DIR}/" "${INSTALL_DIR}/Versions/${FMK_VERSION}/Resources/"

# Removes the binary and header from the resources folder.
rm -r "${INSTALL_DIR}/Versions/${FMK_VERSION}/Resources/Headers" "${INSTALL_DIR}/Versions/${FMK_VERSION}/Resources/${FMK_NAME}"

# Uses the Lipo Tool to merge both binary files (i386 + armv6/armv7) into one Universal final product.
lipo -create "${DEVICE_DIR}/${FMK_NAME}" "${SIMULATOR_DIR}/${FMK_NAME}" -output "${INSTALL_DIR}/Versions/${FMK_VERSION}/${FMK_NAME}"

rm -r "${WRK_DIR}"

sample code:

Tutorial_Freamework_Lib_Create
