PowenKo > Android > UI > GridView

package com.android.grid2;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.view.animation.Animation;
import android.view.animation.RotateAnimation;
import android.widget.BaseAdapter;
import android.widget.GridView;
import android.widget.ImageView;

/**

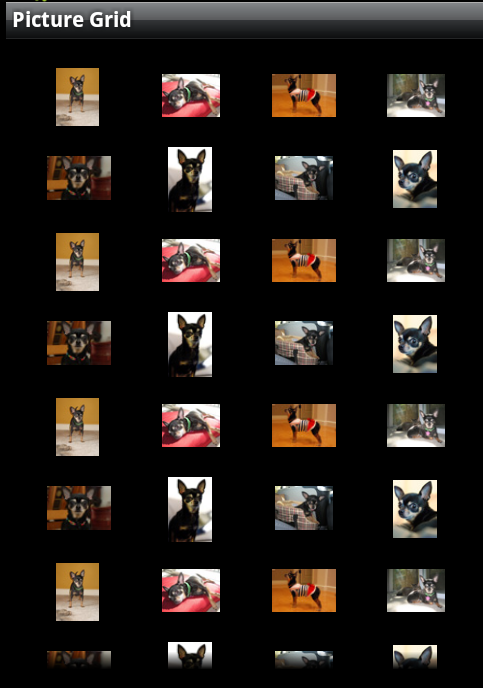

 * A grid that displays a set of framed photos.
 *
 */

public class Grid2 extends Activity {
    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        GridView g = (GridView) findViewById(R.id.myGrid);
        g.setAdapter(new ImageAdapter(this));

    }

    public class ImageAdapter extends BaseAdapter {
        public ImageAdapter(Context c) {
            mContext = c;
        }

        public int getCount() {
            return mThumbIds.length;
        }

        public Object getItem(int position) {
            return position;
        }

        public long getItemId(int position) {
            return position;
        }

        public View getView(int position, View convertView, ViewGroup parent) {
            ImageView imageView;
            if (convertView == null) {
                imageView = new ImageView(mContext);
                imageView.setLayoutParams(new GridView.LayoutParams(45, 45));
                imageView.setAdjustViewBounds(false);
                imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
                imageView.setPadding(8, 8, 8, 8);
                /*
                Animation anim = new RotateAnimation (0, 90);
                imageView.setAnimation(anim);
                */


            } else {
                imageView = (ImageView) convertView;
                //imageView.startAnimation(imageView.getAnimation());
            }

            imageView.setImageResource(mThumbIds[position]);

            return imageView;
        }

        private Context mContext;

        private Integer[] mThumbIds = {
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
                R.drawable.sample_thumb_0, R.drawable.sample_thumb_1,
                R.drawable.sample_thumb_2, R.drawable.sample_thumb_3,
                R.drawable.sample_thumb_4, R.drawable.sample_thumb_5,
                R.drawable.sample_thumb_6, R.drawable.sample_thumb_7,
        };
    }


}

main.xml

<?xml version="1.0" encoding="utf-8"?>
<GridView xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/myGrid"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:padding="10dp"
    android:verticalSpacing="10dp"

    android:horizontalSpacing="10dp"
    android:numColumns="auto_fit"
    android:columnWidth="60dp"
    android:stretchMode="columnWidth"

    android:gravity="center"
    />
