PowenKo, Android Tutorial 087-2, Canvas, Draw text

December 19, 2011   ·   0 Comments

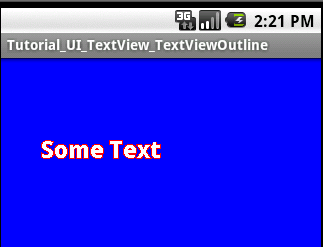

Screen Shot 2011-12-19 at 2.21.53 PM


below demo, how to use android Canvas to draw the text, and display different Font.

package com.powenko;

import android.app.Activity;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Typeface;
import android.os.Bundle;
import android.view.View;

public class Tutorial_UI_TextView_TextViewOutlineActivity extends Activity {
    /** Called when the activity is first created. */
	private myView mv;
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
      //  setContentView(R.layout.main);
   // }
         mv = new myView(this);
        setContentView(mv);

    }
}

class myView extends View {

public myView(Context context) {
   super(context);
}

    @Override
    public void draw(Canvas canvas){

    	Bitmap kangoo = BitmapFactory.decodeResource(getResources(),
				R.drawable.icon);
		canvas.drawColor(Color.BLACK);
		canvas.drawBitmap(kangoo, 130, 10, null);

    	Paint t_paint = new Paint();

    	t_paint.setColor(Color.rgb(0, 0, 255)); //Color.CYAN);

    	canvas.drawRect(0,0,320,480, t_paint);

    	//Typeface tf = Typeface.create("Helvetica",Typeface.DEFAULT_BOLD);
        Paint strokePaint = new Paint();
        strokePaint.setARGB(255, 255, 0, 0);
        strokePaint.setTextAlign(Paint.Align.CENTER);
        strokePaint.setTextSize(24);
        strokePaint.setTypeface(Typeface.DEFAULT_BOLD);
        strokePaint.setStyle(Paint.Style.STROKE);
        strokePaint.setStrokeWidth(2);

        Paint textPaint = new Paint();
        textPaint.setARGB(255, 255, 255, 255);
        textPaint.setTextAlign(Paint.Align.CENTER);
        textPaint.setTextSize(24);
        textPaint.setTypeface(Typeface.DEFAULT_BOLD);

        canvas.drawText("Some Text", 100, 100, strokePaint);
        canvas.drawText("Some Text", 100, 100, textPaint);

        super.draw(canvas);//, mapView, shadow);
    }

}

reference:

http://bestsiteinthemultiverse.com/2008/11/android-graphics-example/

http://www.helloandroid.com/tutorials/how-use-canvas-your-android-apps-part-2

http://www.helloandroid.com/tutorials/how-use-canvas-your-android-apps-part-2
