PowenKo, Android, Tutorial 080-4-2, Thread, Handler And Run, update the UI at the thread mode progressDialog

November 19, 2011   ·   0 Comments

package com.powenko;


import android.app.Activity;
import android.app.Dialog;
import android.os.Message;
import android.app.ProgressDialog;
import android.os.Bundle;
import android.widget.Button;
import android.os.Handler;
import android.util.Log;
import android.view.View;
import android.view.View.OnClickListener;

public class Tutorial_Dialog_ProgressDialogActivity extends Activity {

    ProgressThread progThread;
    ProgressDialog progDialog;
    Button button1, button2;
    int typeBar;                     // Determines type progress bar: 0 = spinner, 1 = horizontal
    int delay = 40;                  // Milliseconds of delay in the update loop
    int maxBarValue = 100;           // Maximum value of horizontal progress bar

    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        // Process button to start spinner progress dialog with anonymous inner class
        button1 = (Button) findViewById(R.id.Button01);
        button1.setOnClickListener(new OnClickListener(){
            public void onClick(View v) {
                typeBar = 0;
                showDialog(typeBar);
            }
        });

        // Process button to start horizontal progress bar dialog with anonymous inner class
        button2 = (Button) findViewById(R.id.Button02);
        button2.setOnClickListener(new OnClickListener(){
            public void onClick(View v) {
                typeBar = 1;
                showDialog(typeBar);
            }
        });
    }

    // Method to create a progress bar dialog of either spinner or horizontal type
    @Override
    protected Dialog onCreateDialog(int id) {
        switch(id) {
        case 0:                      // Spinner
            progDialog = new ProgressDialog(this);
            progDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
            progDialog.setMessage("Loading...");
            progThread = new ProgressThread(handler);
            progThread.start();
            return progDialog;

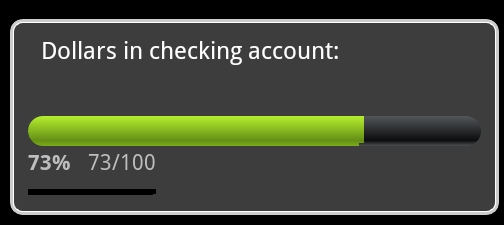

        case 1:                      // Horizontal
            progDialog = new ProgressDialog(this);
            progDialog.setProgressStyle(ProgressDialog.STYLE_HORIZONTAL);
            progDialog.setMax(maxBarValue);
            progDialog.setMessage("Dollars in checking account:");
            progThread = new ProgressThread(handler);
            progThread.start();
            return progDialog;
        default:
            return null;
        }
    }

    // Handler on the main (UI) thread that will receive messages from the
    // second thread and update the progress.

    final Handler handler = new Handler() {
        public void handleMessage(Message msg) {
            // Get the current value of the variable total from the message data
            // and update the progress bar.
            int total = msg.getData().getInt("total");
            progDialog.setProgress(total);
            if (total <= 0){
                dismissDialog(typeBar);
                progThread.setState(ProgressThread.DONE);
            }
        }
    };

    // Inner class that performs progress calculations on a second thread.  Implement
    // the thread by subclassing Thread and overriding its run() method.  Also provide
    // a setState(state) method to stop the thread gracefully.

    private class ProgressThread extends Thread {

        // Class constants defining state of the thread
        final static int DONE = 0;
        final static int RUNNING = 1;

        Handler mHandler;
        int mState;
        int total;

        // Constructor with an argument that specifies Handler on main thread
        // to which messages will be sent by this thread.

        ProgressThread(Handler h) {
            mHandler = h;
        }

        // Override the run() method that will be invoked automatically when
        // the Thread starts.  Do the work required to update the progress bar on this
        // thread but send a message to the Handler on the main UI thread to actually
        // change the visual representation of the progress. In this example we count
        // the index total down to zero, so the horizontal progress bar will start full and
        // count down.

        @Override
        public void run() {
            mState = RUNNING;
            total = maxBarValue;
            while (mState == RUNNING) {
                // The method Thread.sleep throws an InterruptedException if Thread.interrupt()
                // were to be issued while thread is sleeping; the exception must be caught.
                try {
                    // Control speed of update (but precision of delay not guaranteed)
                    Thread.sleep(delay);
                } catch (InterruptedException e) {
                    Log.e("ERROR", "Thread was Interrupted");
                }

                // Send message (with current value of  total as data) to Handler on UI thread
                // so that it can update the progress bar.

                Message msg = mHandler.obtainMessage();
                Bundle b = new Bundle();
                b.putInt("total", total);
                msg.setData(b);
                mHandler.sendMessage(msg);

                total--;    // Count down
            }
        }

        // Set current state of thread (use state=ProgressThread.DONE to stop thread)
        public void setState(int state) {
            mState = state;
        }
    }
}

res\layout\main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

<Button android:text="@string/Button01Text" android:id="@+id/Button01"
            android:layout_width="fill_parent" android:layout_height="wrap_content">
        </Button>
        <Button android:text="@string/Button02Text" android:id="@+id/Button02"
            android:layout_width="fill_parent" android:layout_height="wrap_content">
        </Button>

</LinearLayout>



values\string.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>

    <string name="hello">Hello World, Tutorial_Dialog_ProgressDialogActivity!</string>
    <string name="app_name">Tutorial_Dialog_ProgressDialog</string>

        <string name="Button01Text">Show Spinner Progress Bar</string>
        <string name="Button02Text">Show Horizontal Progress Bar</string>

</resources>
