PowenKo > Android > Customer UI > Sliding Drawer

January 15, 2012   ·   0 Comments

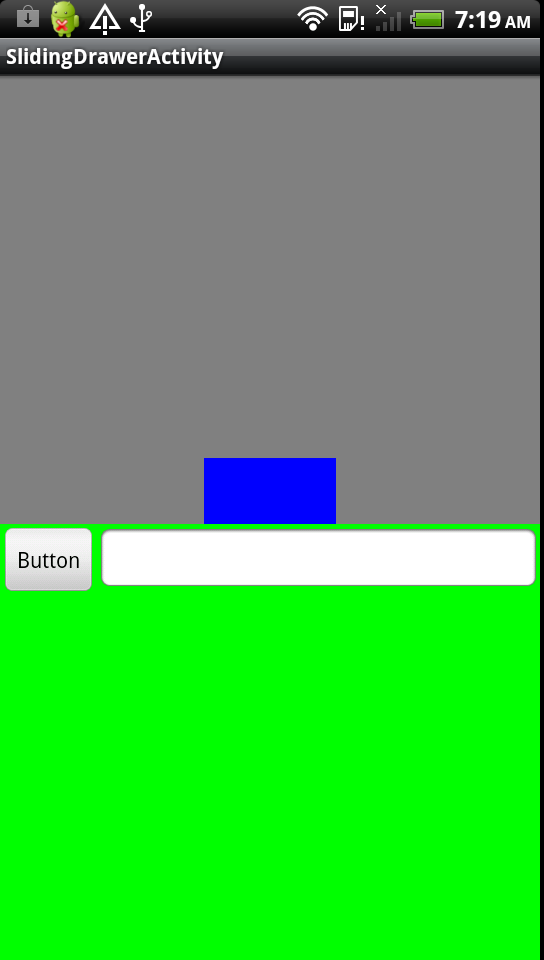

device-2012-01-15-152041

sample code:

SlidingDrawerActivity

package com.android.slidingdraweractivity;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;
import android.widget.SlidingDrawer;

public class SlidingDrawerActivity extends Activity {

    private static final String TAG = "SlideShow";

	private SlidingDrawer mDialerDrawer;

    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        mDialerDrawer = (SlidingDrawer) findViewById(R.id.slidingdrawer);

        mDialerDrawer.setOnDrawerScrollListener(
        		new SlidingDrawer.OnDrawerScrollListener(){
        			public void onScrollStarted() {
        				Log.d (TAG, "This is onScrollStarted.");
        			}
        			public void onScrollEnded() {
        				Log.d (TAG, "This is onScrollEnded.");

        			}
        			}
        		);

        mDialerDrawer.setOnDrawerOpenListener(
        		new SlidingDrawer.OnDrawerOpenListener() {
        			public void onDrawerOpened() { }

        		});

        mDialerDrawer.setOnDrawerCloseListener(
        		new SlidingDrawer.OnDrawerCloseListener() {
        			public void onDrawerClosed() { }
        		});
    }
}

layout\main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:background="#808080"
    >

<SlidingDrawer
    android:id="@+id/slidingdrawer"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical"
    android:handle="@+id/handle"
    android:content="@+id/content" >

    <LinearLayout
        android:id="@id/handle"
        android:layout_width="88dip"
        android:layout_height="44dip"
        android:background="#0000FF"/>

    <LinearLayout
        android:id="@id/content"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:background="#00FF00">

        <Button
            android:id="@+id/button"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Button"/>

        <EditText
            android:id="@+id/editText"
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"/>

    </LinearLayout>

</SlidingDrawer>

<!--
<TextView
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:text="@string/hello"
    />
-->

</LinearLayout>
