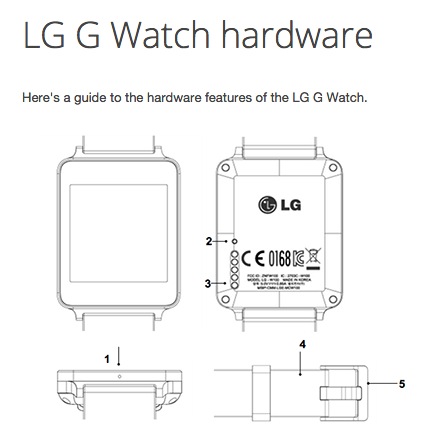

Screen Shot 2014-09-24 at 10.26.55



  1. Microphone麥克風
  2. Reset Button 重置按鈕
  3. Charging Terminal 充電端
  4. Band 錶帶
  5. Buckle錶扣

LG 手錶

qualcomm 公司的 Snapdragon 400 quad-core 處理器  787MHz

Adreno 305 GPU 顯示晶片

512MB RAM 記憶體





Snapdragon 400 的規格

CPU Up to 1.7 GHz dual-core Krait 300 CPU or up to 1.4GHz quad-core ARM® Cortex™ A7 CPU
GPU Up to Qualcomm® Adreno™ 306 GPU
DSP Hexagon™ V40 or V50 DSP (up to 600MHz)
Modem Integrated 4G LTE Advanced World Mode, supporting LTE FDD, LTE TDD, WCDMA (DC-HSPA+), CDMA1x, EV-DO Rev. B, TD-SCDMA and GSM/EDGE

CAT4 speeds of up to 150 Mbps

3rd Generation integrated LTE modem, with support for LTE-Broadcast and LTE multimode dual-SIM (DSDS and DSDA)”

RF 3rd gen power efficient LTE multimode transceiver with Qualcomm RF360™ Front End solution for world mode bands, lower power and PCB reduction
USB USB 2.0
Bluetooth BT4.0 † Integrated digital core
WiFi Qualcomm® VIVE™ 802.11n/ac† Integrated digital core
GPS Qualcomm® IZat™ Gen8A
NFC Supported1
Video/Audio 1080p HD video playback and capture with H.264 (AVC)

720p playback with H.265 (HEVC)1

DASH is supported

Camera Up to 13.5MP
Display 24-bit WXGA (1280×800) + 1080p external display1
Quick Charge Qualcomm® Quick Charge™ 2.0 technology

PM8x26

Chipset SW

Voltage In = 9V, 1.5A out

Memory/Storage LPDDR2/3 533MHz Single-channel 32-bit (4.2GBps)/eMMC 4.51 SD 3.0 (UHS-I)
Process Technology 28nm LP

官方文件 這裡
